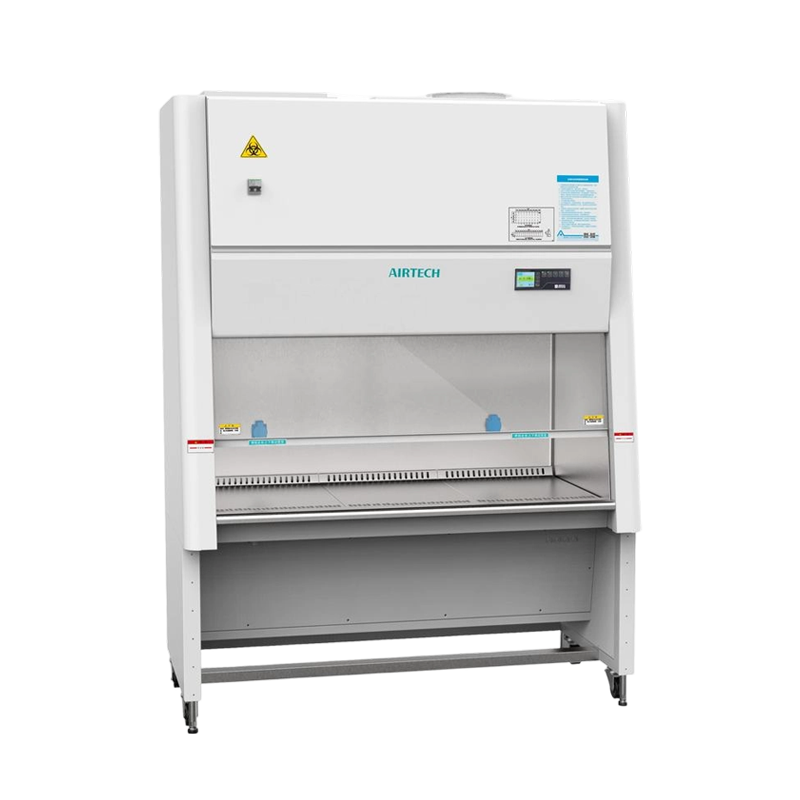

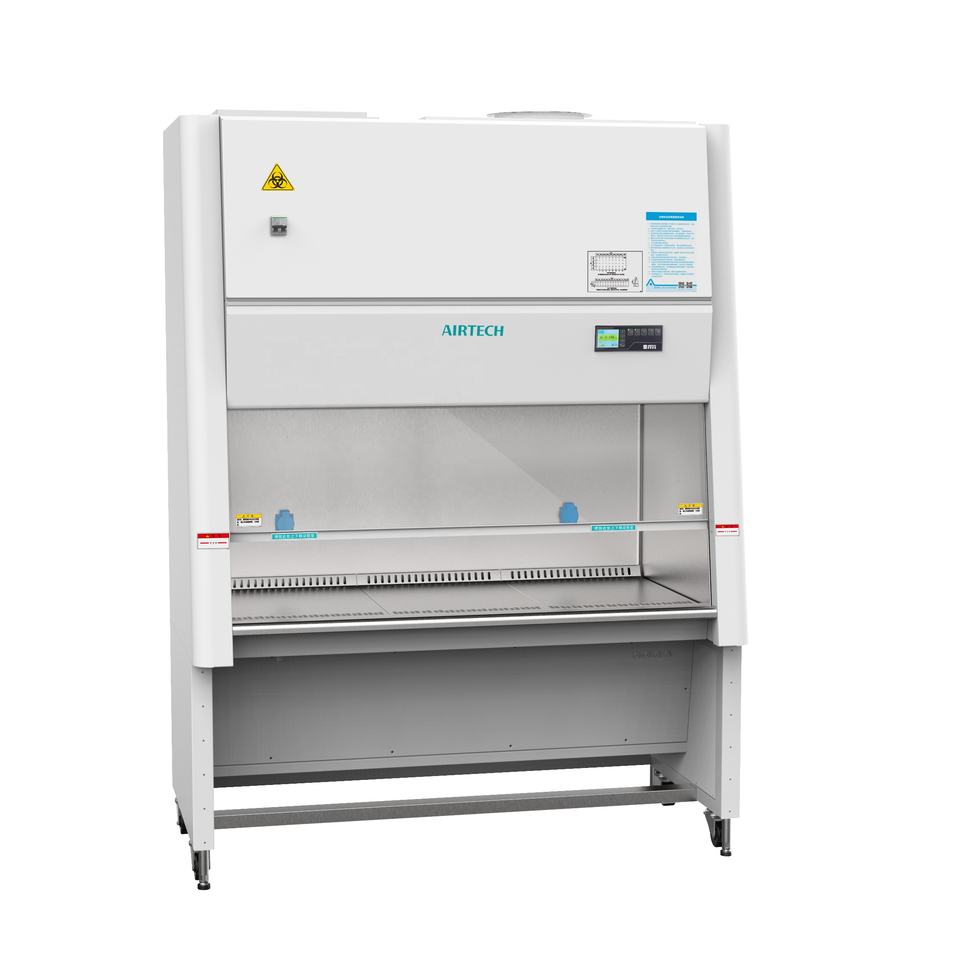

Pharmacy Laboratory Class II A2 Biological Safety Cabinet

Our Class II A2 Biological Safety Cabinet is a professional-grade containment solution designed to address the core challenges of modern laboratories: aerosol exposure, microbial contamination, and cross-contamination risks. It provides reliable protection for personnel, samples, and the environment, making it ideal for cell culture, microbiological testing, and clinical research in medical labs, research centers, and diagnostic facilities.

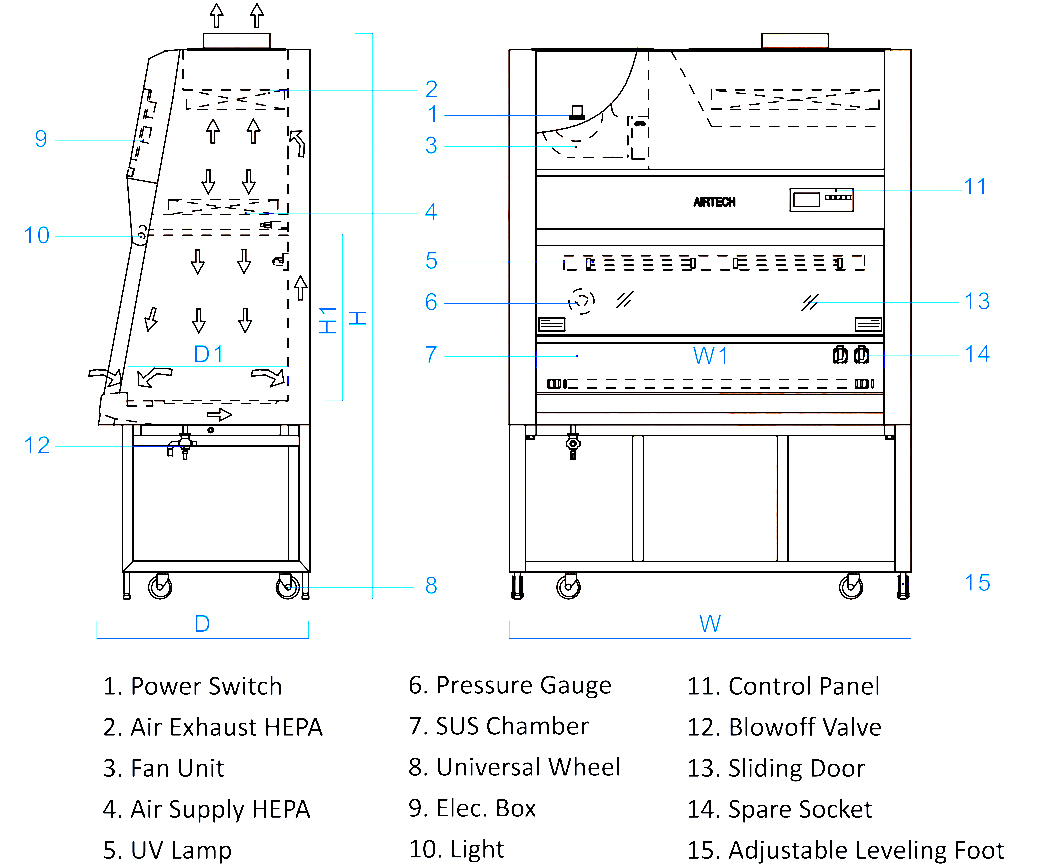

Advanced Airflow & Filtration System

· Dual HEPA-filtered airflow design: Both inflow and downflow air are ULPA filtered (≥99.9995% @0.12μm), ensuring a clean and controlled working environment.

· Optimized airflow balance: Downflow velocity of 0.33–0.35 m/s and inflow velocity of 0.53–0.55 m/s create a stable air curtain to effectively prevent aerosol escape.

· Negative pressure protection: Critical zones operate under negative pressure to eliminate leakage risks and enhance biosafety performance.

· Anti cross-contamination structure: Designed to minimize contamination between samples, ensuring reliable experimental results.

Premium Build & Durable Materials

· Heavy-duty steel construction: High-grade steel cabinet with ivory coating offers excellent corrosion resistance and long-term durability.

· SS304 stainless steel workspace: Fully finished interior provides easy cleaning, chemical resistance, and contamination control.

· Low vibration performance: ≤5 μm vibration at the work surface ensures stability for precision laboratory tasks.

· Quiet operation: Noise level maintained at 58–65 dB(A) for a comfortable working environment.

Comprehensive Protection & Smart Features

1. Triple protection system:

   • Personnel protection: ≤10 CFU/time

   • Product protection: ≤5 CFU/time

   • Cross-contamination control: ≤2 CFU/time
     Ensuring full protection for users, samples, and the environment.

2. High-efficiency LED lighting: Illumination ≥900 Lx provides excellent visibility for precise operations.

3. UV sterilization system: Built-in UV lamp enables effective disinfection of the working area.

4. Ergonomic front opening: 200 mm access height balances user comfort with containment safety.

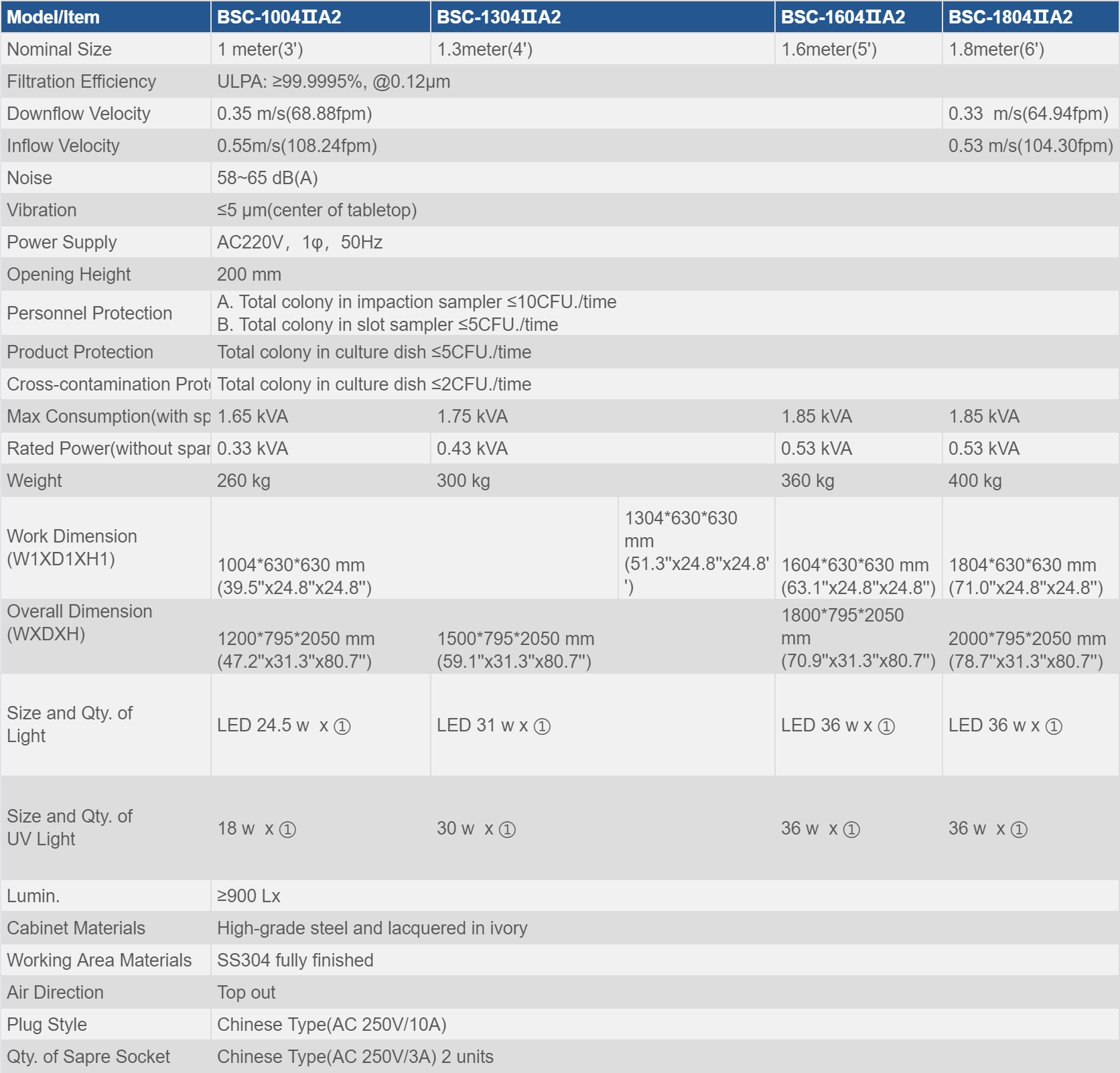

Flexible Configurations for Different Lab Needs

Available in multiple sizes to suit various laboratory layouts:

• BSC-1004ⅡA2 (1m)

• BSC-1304ⅡA2 (1.3m)

• BSC-1604ⅡA2 (1.6m)

• BSC-1804ⅡA2 (1.8m)

Each model offers optimized workspace dimensions and robust structural design for seamless integration.

Installation & Operational Advantages

· Standard power compatibility: AC220V power supply with built-in spare sockets for additional equipment.

· Stable and reliable structure: Weight range from 260 kg to 400 kg ensures vibration-free and secure operation.

· Energy-efficient performance: Rated power as low as 0.33–0.53 kVA helps reduce operational costs.

Applications & Customization

Ideal for:

1. Medical laboratories and hospital diagnostics

2. Cell culture and microbiological research

3. Pharmaceutical and biotech R&D

4. Clinical testing and analysis

5. Academic and research institutions

Customization options include international plug standards, intelligent monitoring systems, airflow optimization, and additional functional upgrades tailored to specific laboratory requirements.

Investing in a Class II A2 Biological Safety Cabinet means achieving a balance of safety, efficiency, and reliability. It not only ensures compliance with global biosafety standards but also enhances laboratory productivity while maintaining a secure and controlled working environment.
